Wednesday, July 4, 2018

Visual INSTRUCTIONS FOR COMPILING SWMM5.EXE USING MICROSOFT VISUAL STUDIO 2017

Visual INSTRUCTIONS FOR COMPILING SWMM5.EXE USING MICROSOFT VISUAL STUDIO 2017
=======================================================================

1. Create a sub-directory named VS2017-CLE under the directory where
   the SWMM 5 Engine source code files are stored and copy SWMM5.DEF
   and VS2017-DLL.VCPROJ to it.
2. Launch Visual Studio 2017 and use the File Open command to open
   the VS2017-DLL.VCPROJ file.
3. Issue the Build Configuration Manager command and select the
   Release configuration.

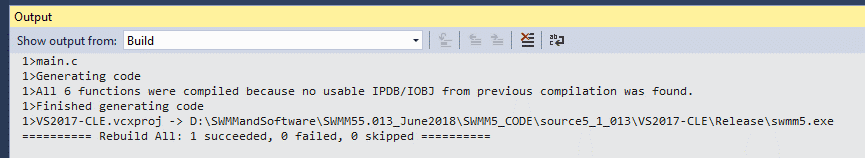

4. Issue the Build VS2017-DLL command to build SWMM5.DLL
   (which will appear in the Release subdirectory underneath the
   VC2017-DLL directory).


Import a SWMM5 INP File to InfoSWMM and InfoSWMM SA

Import a SWMM5 INP File to InfoSWMM and InfoSWMM SA

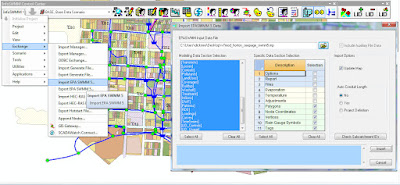

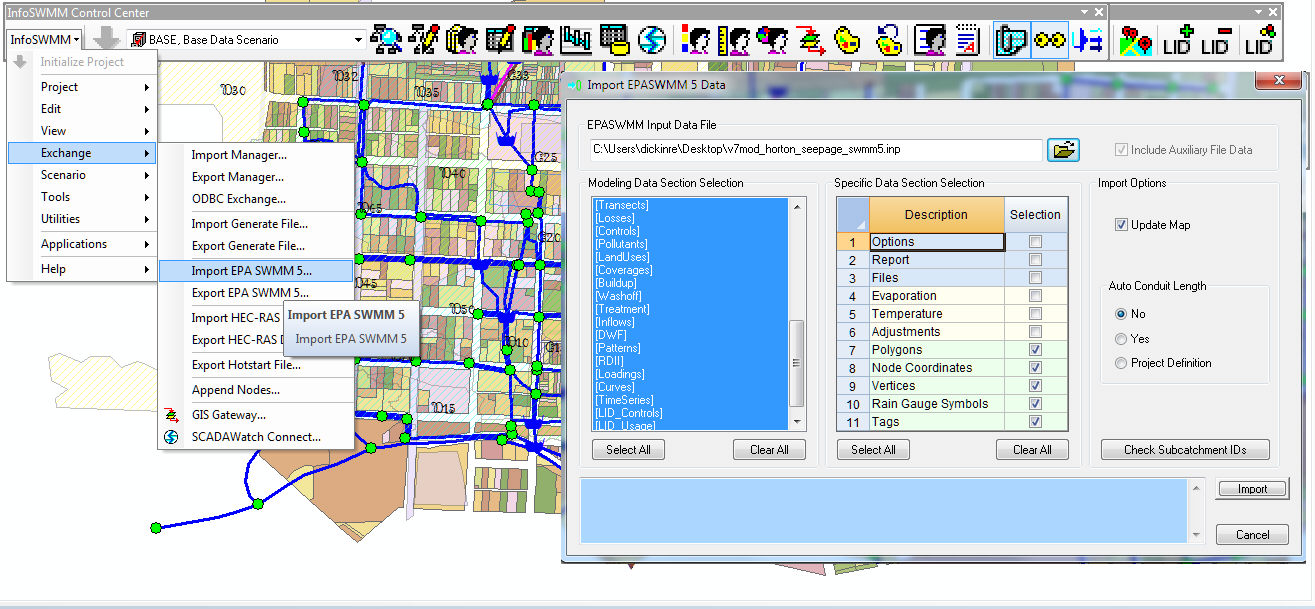

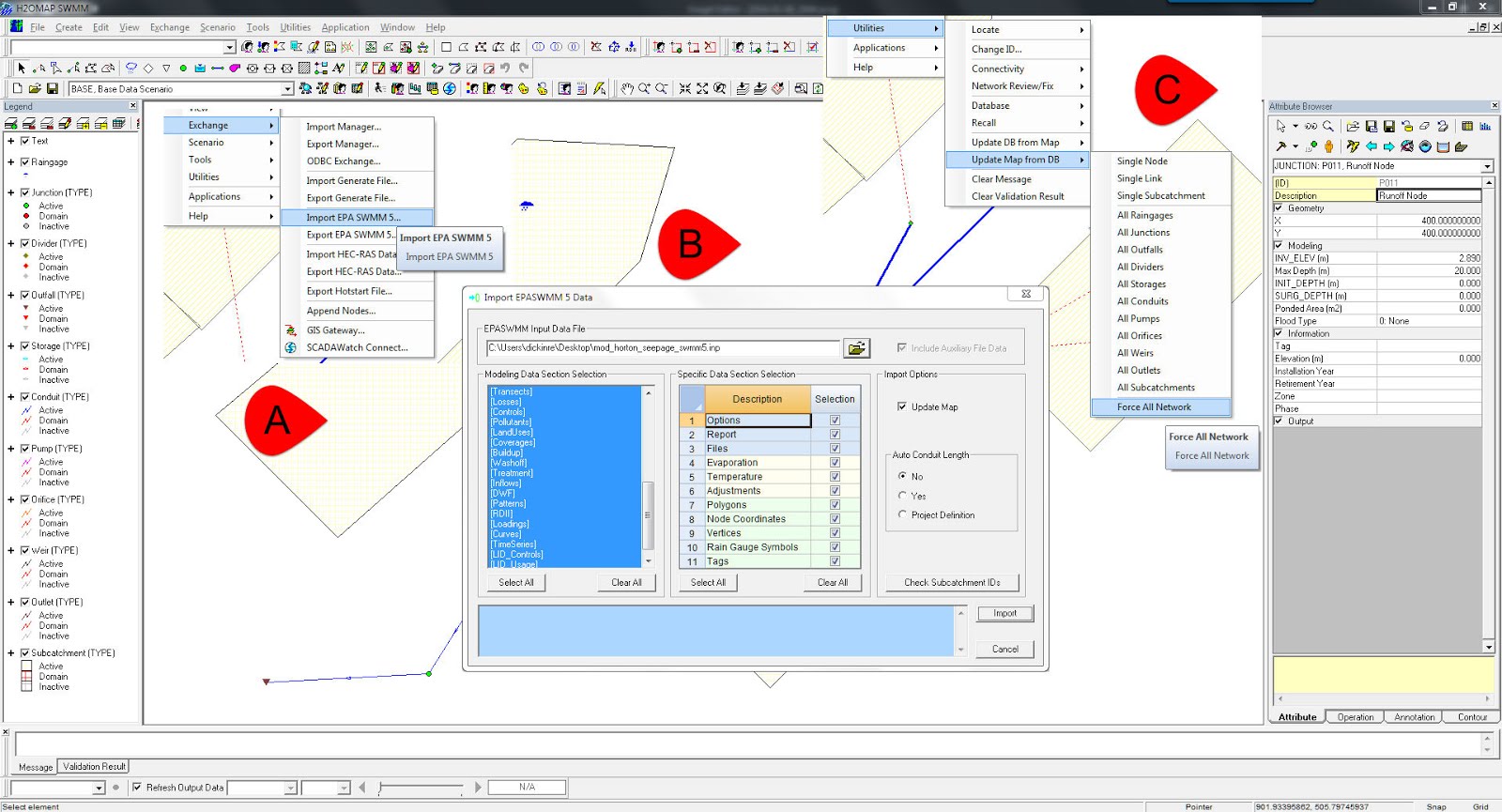

Steps to Import SWMM 5 to InfoSWMM and InfoSWMM SA
A import the SWMM 5 File using Exchange
B Select the SWMM 5 INP file
C Update the Map by using the Utility Update Map from DB / Force All Network


How to See the Highest Continuity Errors Table in the Output Report Manager In InfoSWMM and SWMM5

How to See the Highest Continuity Errors Table in the Output Report Manager
In the output text report file of InfoSWMM, InfoSWMM SA and SWMM5 there is the Highest Node Continuity Error Table.   The Table shows the highest 20 Nodes for  percent node continuity errors and the actual continuity error as defined by Node Outflow - Node Inflow.   This  table is  also shown in the Output Report Manger  table
The same value of Node Outflow - Node Inflow is shown in the Junction Summary table under the column flow volume difference.  The units of flow volume difference will be the same as the RPT file if the units are changed in the Output Unit Manger.


How to change the volume units  in  the Output Unit Manger.  Change the volume to MG or ML (for SI units).

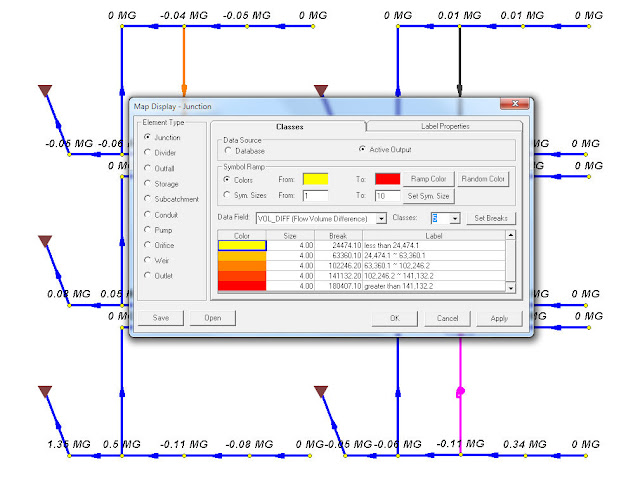

The flow volume difference can also be seen in Map Display by picking the Active Output variable Vol_Diff or Flow Volume Difference.


Tuesday, July 3, 2018

InfoSWMM and InfoSewer from Innovyze both are Extensions inside of Arc Map (versions 10 to 10.6 and counting)

InfoSWMM and InfoSewer from Innovyze both are Extensions inside of Arc Map (versions 10 to 10.6 and counting).   As Innovyze Arc GIS products they (and InfoWater) share a common menu structure: Project, Edit, View, Exchange, Scenario, Tools, Utilities, Applications and Help.  InfoSewer only has one Application, InfoSewer Load Allocator, whereas InfoSWMM has many additional Applications.  These series of blogs attempts to show the commonality in tools between InfoSWMM and InfoSewer.


Hidden features of the 1D St Venant solution for SWMM5, InfoSWMM, and ICM SWMM Networks

1/ There is also an ArcEngine version of InfoSWMM call InfoSWMM SA. I will SA to show some hidden features of the 1D St Venant solution f...
